Osburn

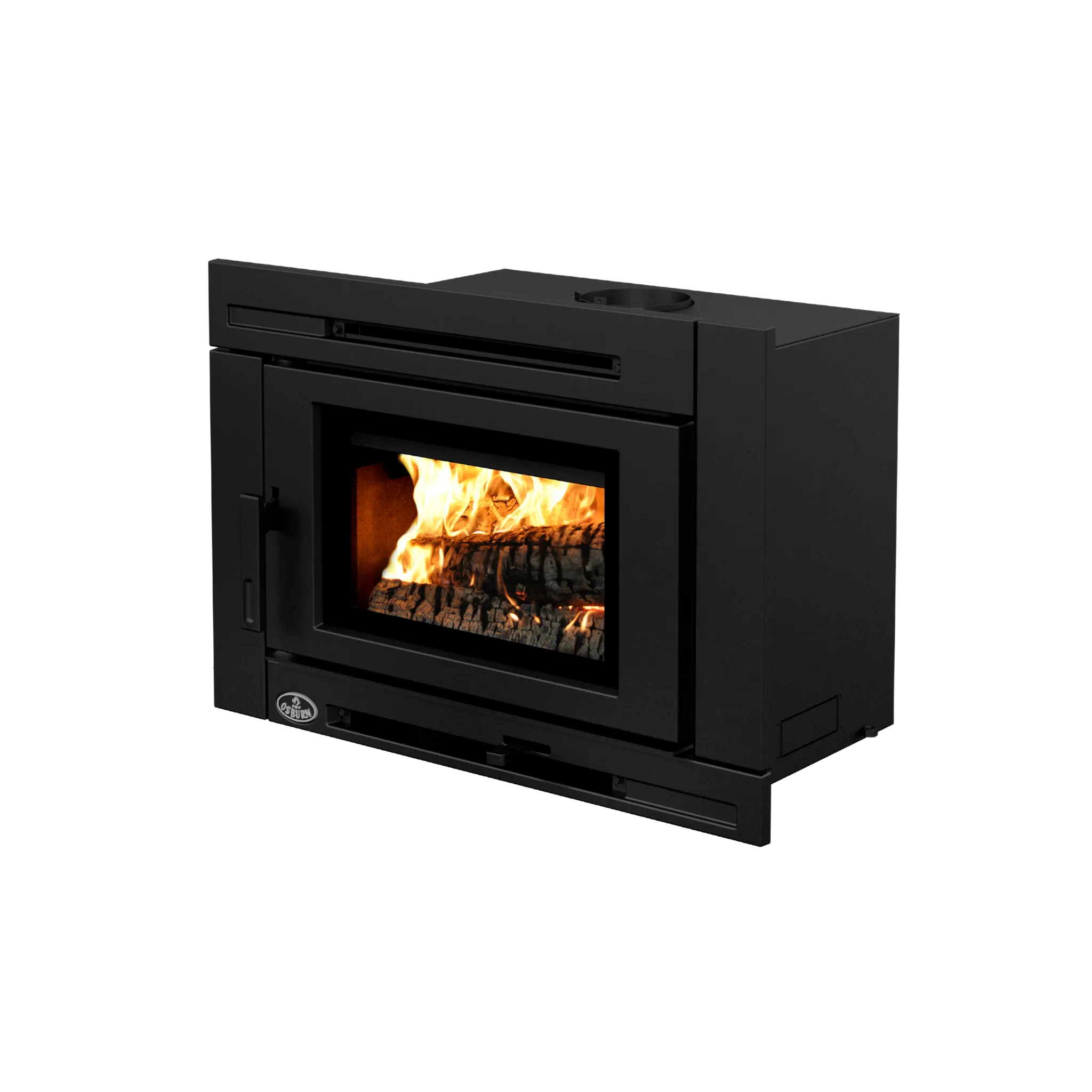

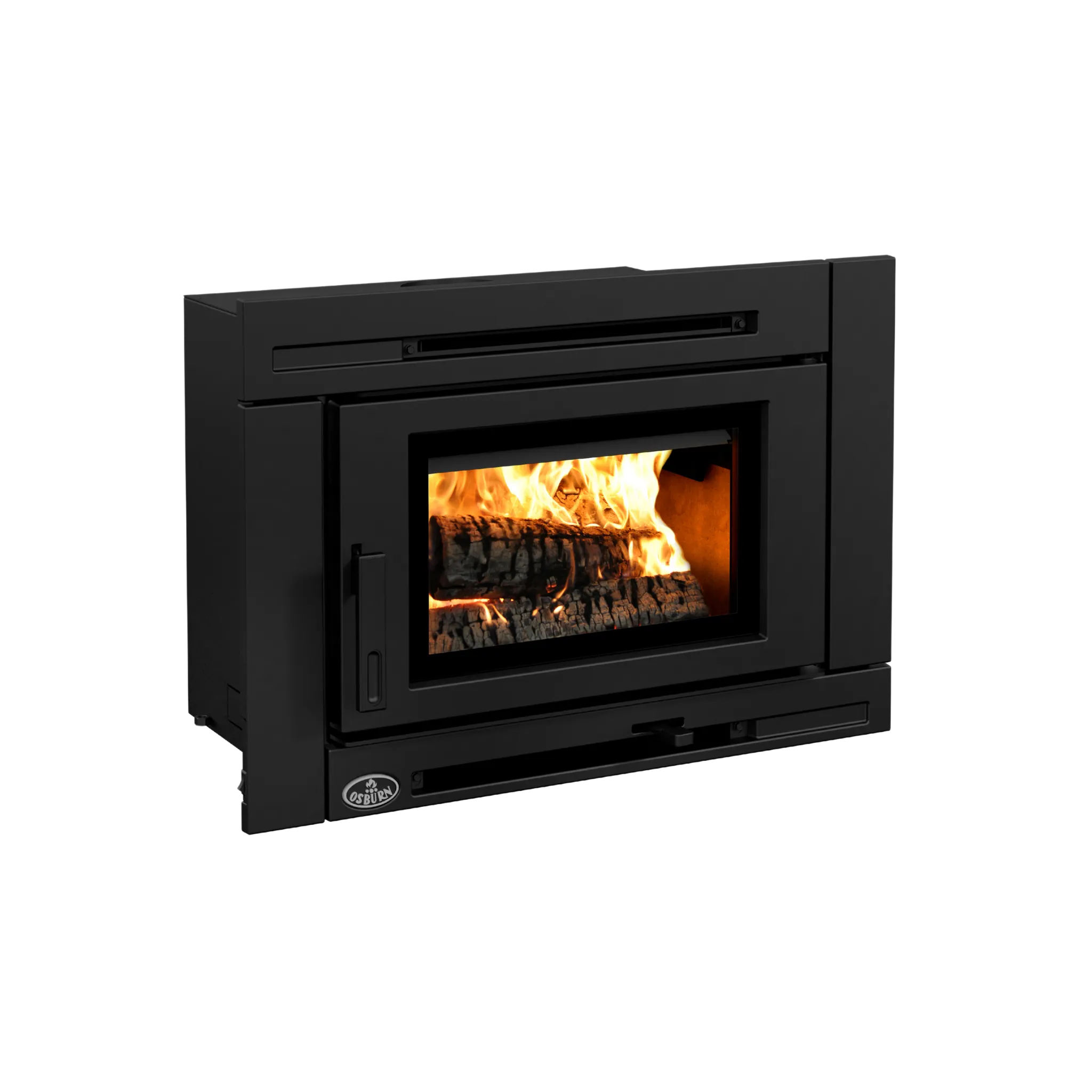

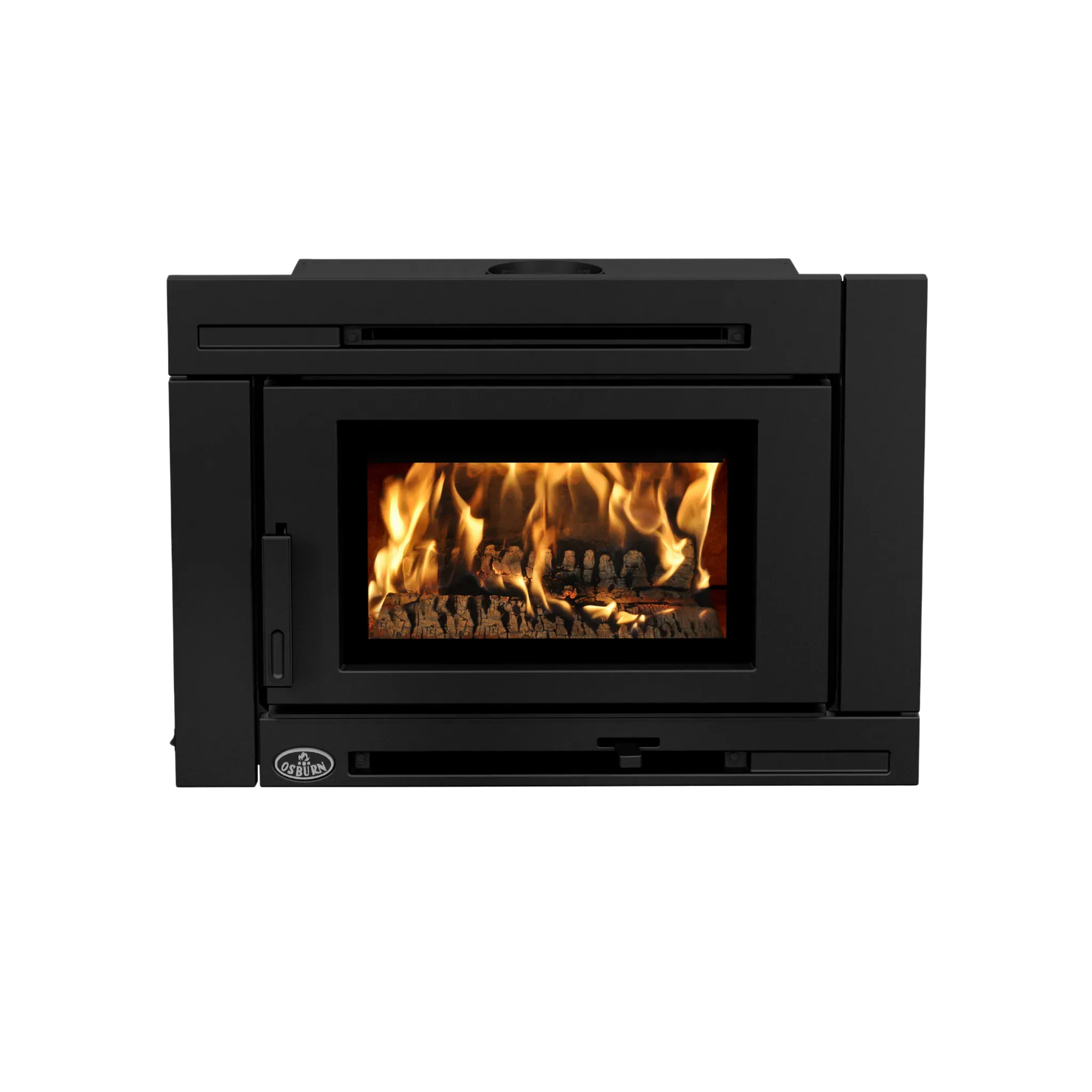

Osburn Matrix-I Wood Insert
A 2.4 cubic foot non-catalytic wood insert with a contemporary flush cast-iron surround and a near-square viewing window.
Kaminos is our fireplace retail store under the same ownership. View current pricing and available options there. For installation enquiries, contact Brown Chimney; availability depends on your location.
About this model
Overview
The Matrix-I is a medium-large wood insert with a 2.4 cubic foot firebox and a contemporary cast-iron surround that sits flush against the fireplace face. The ceramic window measures 19 5/8 by 11 7/8 inches, giving an almost square view of the fire.
It is EPA 2020 cordwood certified at 2.3 g/hr published particulate emissions against a 2.5 g/hr limit, with 72% HHV efficiency and up to 79% at the most efficient burn rates. A 90 CFM heat-activated blower is included, and the insert is installed in a code-compliant masonry fireplace with a continuous stainless steel liner.
Is this right for your home?
An existing masonry fireplace where a contemporary flush face is preferred and the opening is at least 23 3/8 inches high.
Check before ordering
- The masonry opening against the manual's minimum of 23 3/8" H x 28 7/8" W x 19 5/8" D.
- The condition of the chimney, since the insert is installed with a continuous full-height stainless steel liner.
- Access to seasoned firewood, with logs up to 20 inches loaded east-west.
Worth knowing
- The manufacturer's 500 to 2,100 sq ft heating range depends heavily on insulation, layout and climate.
- The published 8-hour maximum burn time is a maximum, not the length of useful heat output.
Specifications
Figures published by the manufacturer. Where a value applies to a specific model or configuration, it is noted in the row.
Installation
Like every wood insert here, the Matrix-I goes into a code-compliant masonry fireplace and connects to a continuous stainless steel liner running the full height of the chimney. The published minimum opening is the first thing to measure against.
Brown Chimney can measure the opening, inspect the chimney and confirm what liner work the installation would involve before anything is ordered.
Service availability depends on your location.
What to check before installation
What an assessment of this model would cover:
- Measured height, width and depth of the masonry opening against the 23 3/8" x 28 7/8" x 19 5/8" minimum.
- Chimney condition and the liner run required for its full height.
- Hearth extension and the finish where the flush surround meets the face.
Product documentation
Product details and imagery on this page come from the Kaminos product page.
Frequently asked questions
Will it fit my fireplace?
Only if the masonry opening meets the manual's minimum of 23 3/8 inches high, 28 7/8 wide and 19 5/8 deep. Measure all three before shortlisting the model.
Is a blower included?
Yes. A 90 CFM heat-activated blower is standard on this model, with an auto, manual and off switch.
How does it compare with the Matrix 2700?
The Matrix-I has a smaller 2.4 cu ft firebox and a 90 CFM blower, while the Matrix 2700 has a 2.5 cu ft firebox, a 176 CFM blower and a larger minimum opening. The opening you have usually decides between them.
